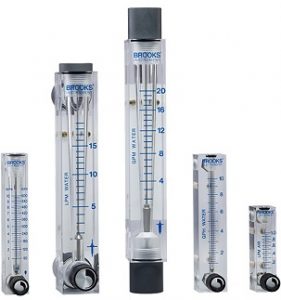

型號 2510 / 2520 / 2530 / 2540S/2450V/ 2540I，非腐蝕性和低壓應用，采用了精加工的亞克力材質；液體或氣體測量經濟合算。
| 型號 | 2510 | 2520 | 2530 | 2540S or V | 2540I |
| 區別 | Premium Threaded Inserts for Reliable Panel Mounting
Valve With Positive Stop Annealed Body for Added Strength |
Premium Threaded Inserts for Reliable Panel Mounting
Valve With Positive Stop Annealed Body for Added Strength |
Premium Threaded Inserts for Reliable Panel Mounting
Valve With Positive Stop Annealed Body for Added Strength |
Higher Accuracy
S – Back Connections (Standard) V – Valve (Back Connection Only) |
Higher Accuracy
I – End Connection |
| 流量范圍-滿量程容量 | Air
0.1 – 200 scfh 0.04 – 25 lpm* 6 – 100 lpm |
Air
0.4 – 40 scfh 10 – 100 scfh* 20 – 200 scfh 100 – 1000 ccm 0.4 – 20 lpm* 3 – 50 lpm 10 – 100 lpm* 0.3 – 3 scfm* |
Air
0.5 – 20 scfm 14 – 560 lpm
|
Air
3 – 100 scfm 100 – 3000 lpm
|
Air
3 – 100 scfm 100 – 4000 lpm
|
| 流量范圍-滿量程容量-液體 | Water
10 – 240 ccm 0.2 – 5 gph 1 – 10 gph* 2 – 40 gph |
Water
4 – 660 ccm 100 – 1500 ccm* 200 – 3700 ccm 1- 60 gph* |
Water
0.25 – 5 gpm 1- 20 lpm |
Water
0.4 – 20 gpm 1- 75 lpm |
Water
0.4 – 20 gpm 1- 75 lpm |
| 精度 | 5% FS | 3% FS | 3% FS | 2% FS | 2% FS |
| Z大壓力 | 100 psig | 100 psig | 100 psig | 100 psig | 100 psig |
| Z大溫度 | 65oC (150oF) | 65oC (150oF) | 65oC (150oF) | 65oC (150oF) | 65oC (150oF) |
| 密封材料 | BUNA-N (Std with Brass fittings)*
Viton? (Std with Stainless Steel fittings)* *QuickShip |
BUNA-N (Std with Brass fittings)*
Viton? (Std with Stainless Steel fittings)* *QuickShip |
BUNA-N (Std with Brass fittings)
Viton? (Std with Stainless Steel fittings) |
Buna-N O-Rings w/Brass or PVC fittings
Viton O-rings w/Stainless Steel fittings (Valve Internal) |
Buna-N O-rings w/Brass or PVC fittings
Viton O-rings w/Stainless Steel fittings (Valve Internal) |
| 過程連接材料 | Brass*
Stainless Steel* *QuickShip |
Brass*
Stainless Steel* *QuickShip |
Brass
Stainless Steel |
PVC FNPT Pipe Connections (Std.) | PVC FNPT Pipe Connections (Std.) |
| 閥門 | No Valve*
Standard Inlet Valve* Outlet Valve *QuickShip |
No Valve*
Standard Inlet Valve* Outlet Valve *QuickShip |
No Valve
Standard Inlet Valve Outlet Valve |
Integral Valve on “V” Model
Inline Gate Valve on “S” Model |
Inline Gate Valve |
