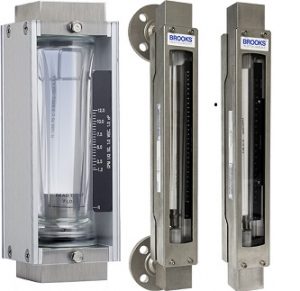

型號 1305 / 1306 / 1307，GT130x 系列玻璃管 VA 流量計是一系列經濟、通用流量計，專為中等計量精度要求的普遍應用而設計 – 根據所選型號，典型精度范圍為 1％ 到 10％ 滿量程。他們是清洗類服務、密封油系統、軸承潤滑和冷卻水指示的選擇，并采用環密封結構，具有從十到一的可調范圍，以及廣泛的浮子類型和容量范圍。GT130x 密封系列流量計是對 Brooks Instrument Full View? 1100 系列流量計的模塊化簡易替代系列：型號 1110、1114、1140、1144。
| 型號 | 1305 | 1306 | 1307 |
| 區別 | Vertical connections
Threaded Connection only 75 mm scale length +/- 10% Full Scale +/- 5% Full Scale |
Threaded or Flange Connections
Models 1306:? +/- 1% Full Scale? /? Class?1.6 VDI /? VDE Models 1306:? +/- 2% Full Scale? / Class?2.5 VDI? /? VDE 127/150 mm scale length |
Threaded or Flange Connections
Models 1307:? +/- 1% Full Scale? /? Class?1.6 VDI /? VDE Models 1307:? +/- 2% Full Scale? / Class?2.5 VDI? /? VDE 250 mm scale length |
| 流體類型 | Clean Liquids
Gas |
Clean Liquids
Gas |
Clean Liquids
Gas |
| 流量范圍-滿量程容量 | Flow Range – Water:??25 GPM? /??95 l/h
Flow Range – Air:??50 SCFM? /??87 m3n/h |
Flow Range – Water:??9.8 GPM? /??2200 l/h
Flow Range – Air:??39 SCFM? /??61 m3n/h |
Water:??10 GPM? /??2,460 l/h
Air:??45 SCFM? /??69 m3n/hr |
| 精度 | ±10% Full Scale
±5% Full Scale |
+/- 2% Full Scale? /? Class 2.5 VDI /? VDE
+/- 1% Full Scale? / Class 1.6 VDI? /? VDE |
+/- 2% Full Scale? /? Class 2.5 VDI /? VDE
+/- 1% Full Scale? / Class 1.6 VDI? /? VDE |
| 溫度范圍 | 33 to 250°F? /? 1?to 121°C | 33 to 250°F? /? 1?to 121°C | 33 to 250°F? /? 1?to 121°C |
| Z大壓力 | Size 8: 200 PSIG? /? 13.7 bar
Size?10: 150 PSIG? /? 10.3 bar |
Refer to Maximum Pressure Ratings Table in Data Sheet | Refer to Maximum Pressure Ratings Table in Data Sheet |
| 標尺長度 | 75 mm | 127 / 150 mm | 250 mm |
| 接液材料 | Brass or 316 Stainless Steel | Brass or 316 Stainless Steel | Brass or 316 Stainless Steel |
| 過程連接 | NPT (Female) | Models 1306:? Female NPT, Rc? /? 150# Flange per ASME B16.5 | Models 1307:? Female NPT, Rc? /? 150# Flange per ASME B16.5 |
| 報警 | None | None | None |
| 認證和批準 | Pressure Test certificate
Oxygen Cleaning certificate Certificate of Conformance |
International Calibration Certificate (ICC)
Pressure Test certificate Oxygen Cleaning certificate Certificate of Conformance |
International Calibration Certificate (ICC)
Pressure Test certificate Oxygen Cleaning certificate Certificate of Conformance |
