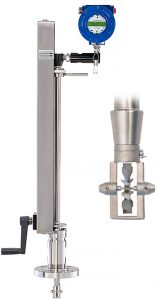

F-1500 Series Insertion Turbine Flow Meters are designed for accurate, cost-effective mass flow measurement of steam, high temperature liquids and gases. Insertion turbine flow meters are ideal for use in larger steam lines where downsizing the line size to improve flow measurement is not desirable. In these applications, the pitch of the turbine rotor is selected to match the expected steam flow velocity range in the pipe. This optimizes the operating range of the flow meter for the application.
The standard loop powered version of the meter is equipped with the internal temperature compensation required for direct mass flow measurement of saturated steam. Each F-1500 Flow Meter is provided with a 4-20mA analog output for flow rate, a pulse output for totalization and a built-in user interface and display. The standard loop powered meter also includes HART.
Standard Features:
Provides Direct Mass Flow Measurement for Saturated Steam?– The use of a precision platinum RTD coupled with the ability to perform complex density calculations allows the meter to provide a direct mass flow measurement without the need for a separate mass flow calculator.
Highly Accurate?– When correctly installed, the mass flow measurement accuracy for saturated steam exceeds 2.0% of reading.
Insertion Design?– Allows for insertion and removal without a system shutdown. Ideal for retrofit installations.
Individuallly Calibrated and Programmed for Each Application?– Every flow meter undergoes a multi-point calibration. In addition, each meter is individually programmed using application specific data supplied by the customer.
Simple Installation and Commissioning?– Loop powered design simplifies wiring and signal processing. Additionally, each meter is factory programmed and ready for use upon delivery. The built-in user interface provides access to all programming functions, including a comprehensive self diagnostic capability.?
